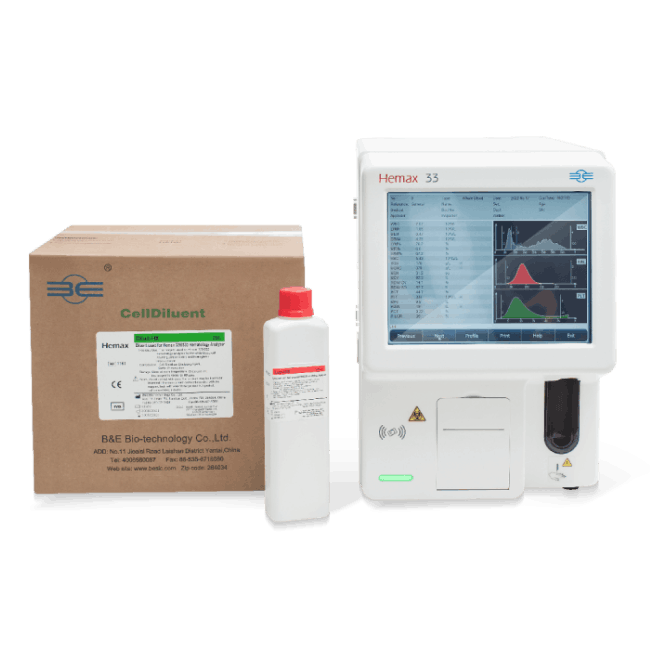

Hemax33
2 reagents: diluent and lyse
21 Parameters

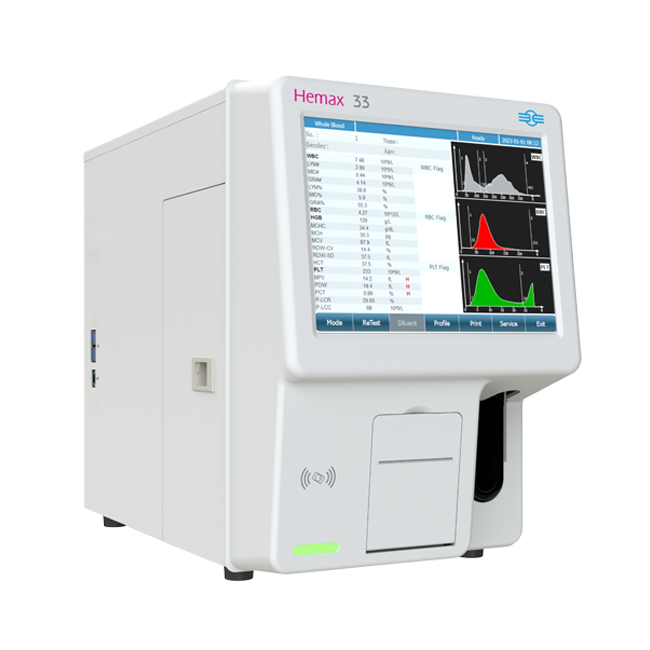

Hematology Analyzer Hemax33
WBC, RBC, HGB, MCHC, MCH, MCV, HCT RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR,P-LCC, LYM#, MlD#, GRA#, LYM%, MID%, GRA%, 3 Histograms for WBC, RBC and PLT
Technical Specification
| Sample Volume | Whole BIood 10μL, PeripheraI BIood 10μL, Pre-diluted BIood 20μL |
| Throughput | Up to 60 samples per hour |
| Calibration Method | Manual |
| QC graph | L-J Graph |
| Carryover | WBC/RBC/HGB ≤ 0.5%, PLT ≤1.0% |
| Accuracy (CV) | -- WBC ≤ 2.5% -- RBC ≤ 1.5% -- HGB ≤ 1.5% -- MCV ≤ 0.5% -- PLT ≤ 5.0% |
| Data Input | Touch screen/mouse/keyboard |
| Storage | 100000 test results including histograms |
| Display | 10” LCD touch screen |
| Printer | built-in thermal printer/external printer (optional) |
| Input/Output | RS-232, USB, Keyboard and Mouse Interface |
| Operating Environment | 15°C-35°C, Humidity: 10% - 90% |
| Power Requirement | a.c.110V-220V ±10%, 50/60Hz ±1HZ |
